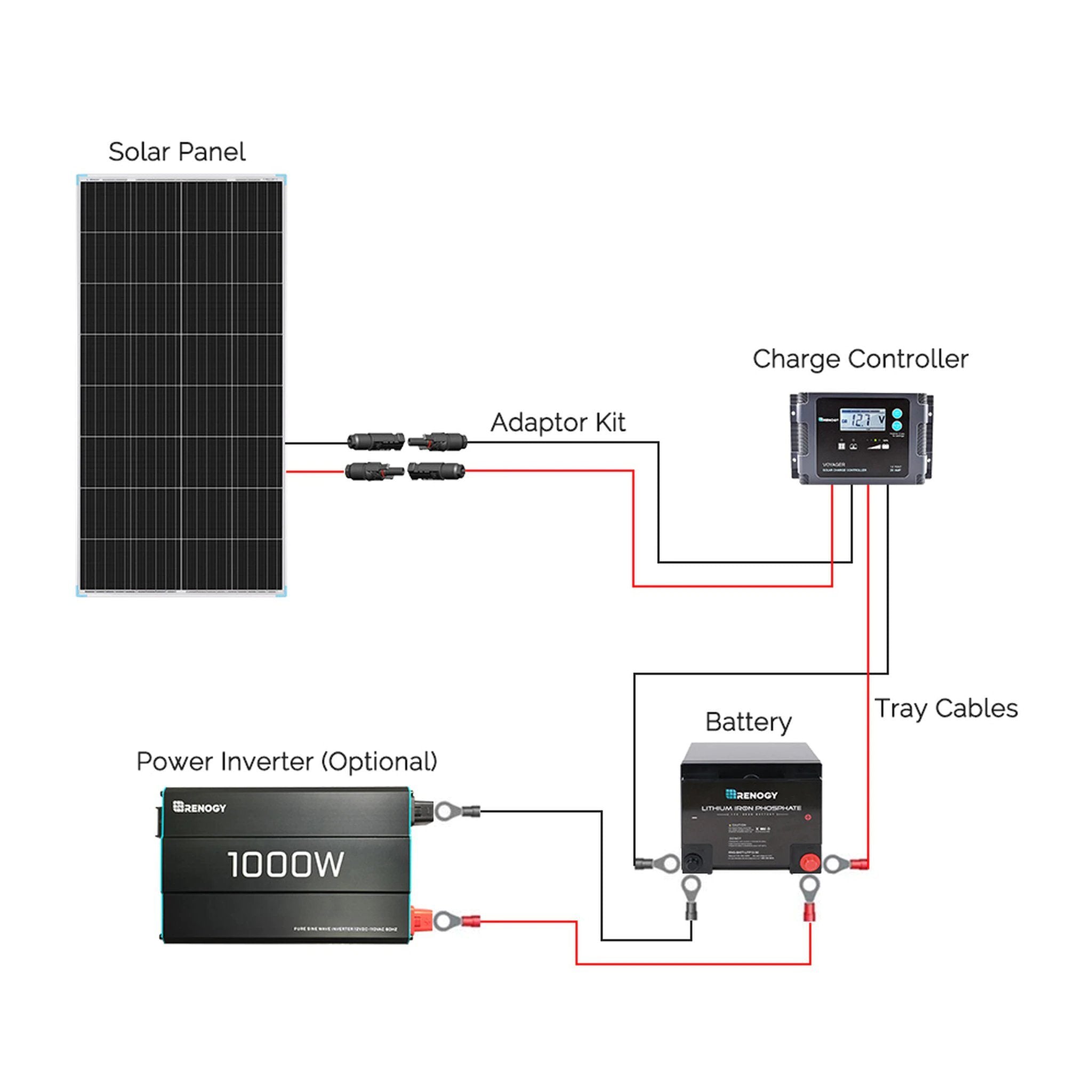

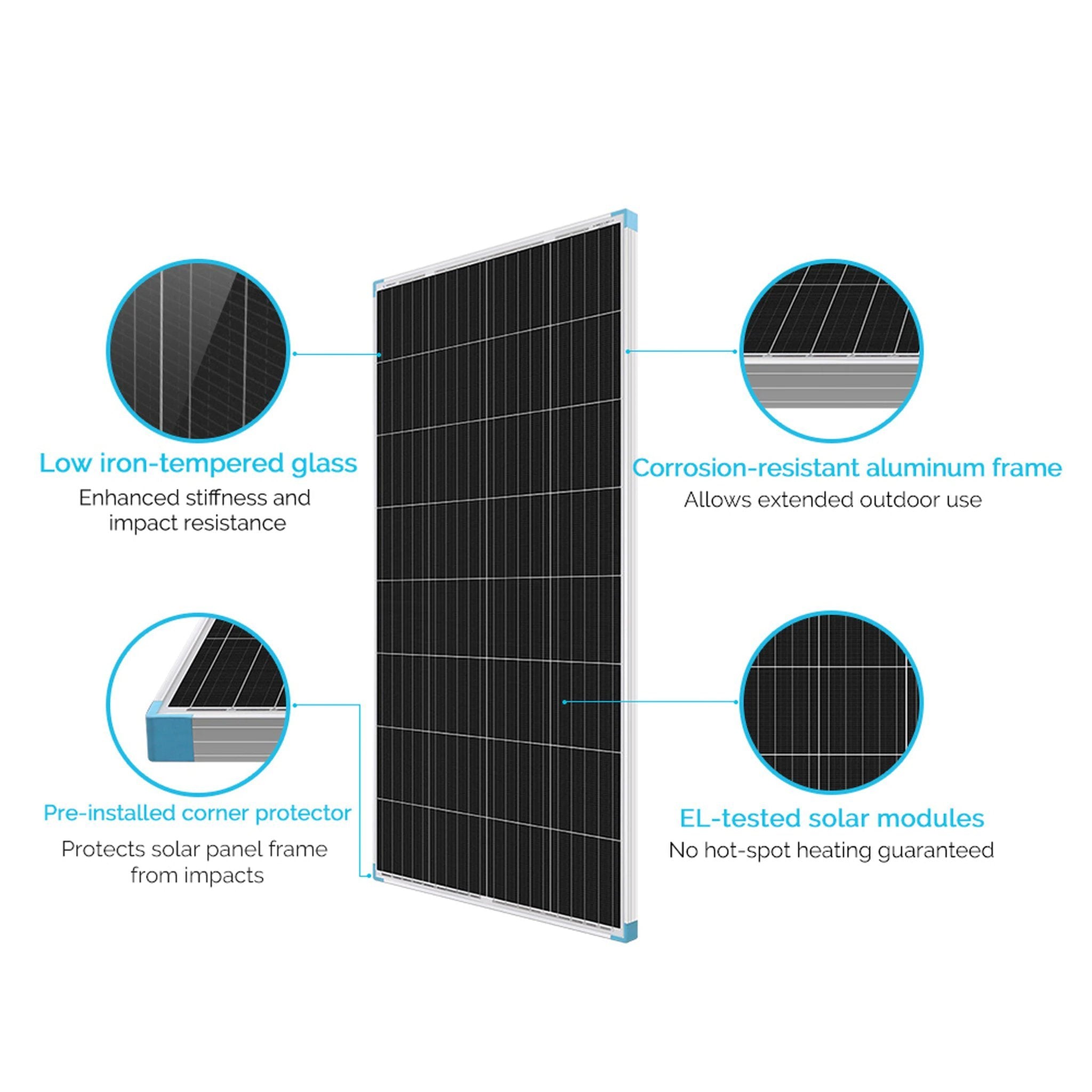

The Renogy 175 Watt 12 Volt Monocrystalline Solar Panel is a key component to any solar power (PV) system. Each solar panel includes solar connectors that extend from the junction box affixed to the back of each panel. The solar connectors are compatible with the Renogy solar connector Adaptor Kit - allowing for a quick and simple connection. Whether you take it camping in the mountains or for a trip to the beach, this off-grid panel can be a great start or addition to any Renogy off-grid system!
Each Renogy 175W Monocrystalline Solar Panel is capable of withstanding heavy snow and strong wind loads. Each panel is quality tested to ensure safety and longevity.
Max Power at STC: 175W
Open Circuit Voltage: 21.6V
Short Circuit Current: 10.62A
Opitmum Operating Voltage: 18V
Optimum Operating Current: 9.73A
Operating Temperature: -40°F to 176°F (-40°C to 80°C)
Maximum System Voltage: 600VDC UL
Maximum Series Fuse Rating: 15A
Cables: 12 AWG 2.3ft long

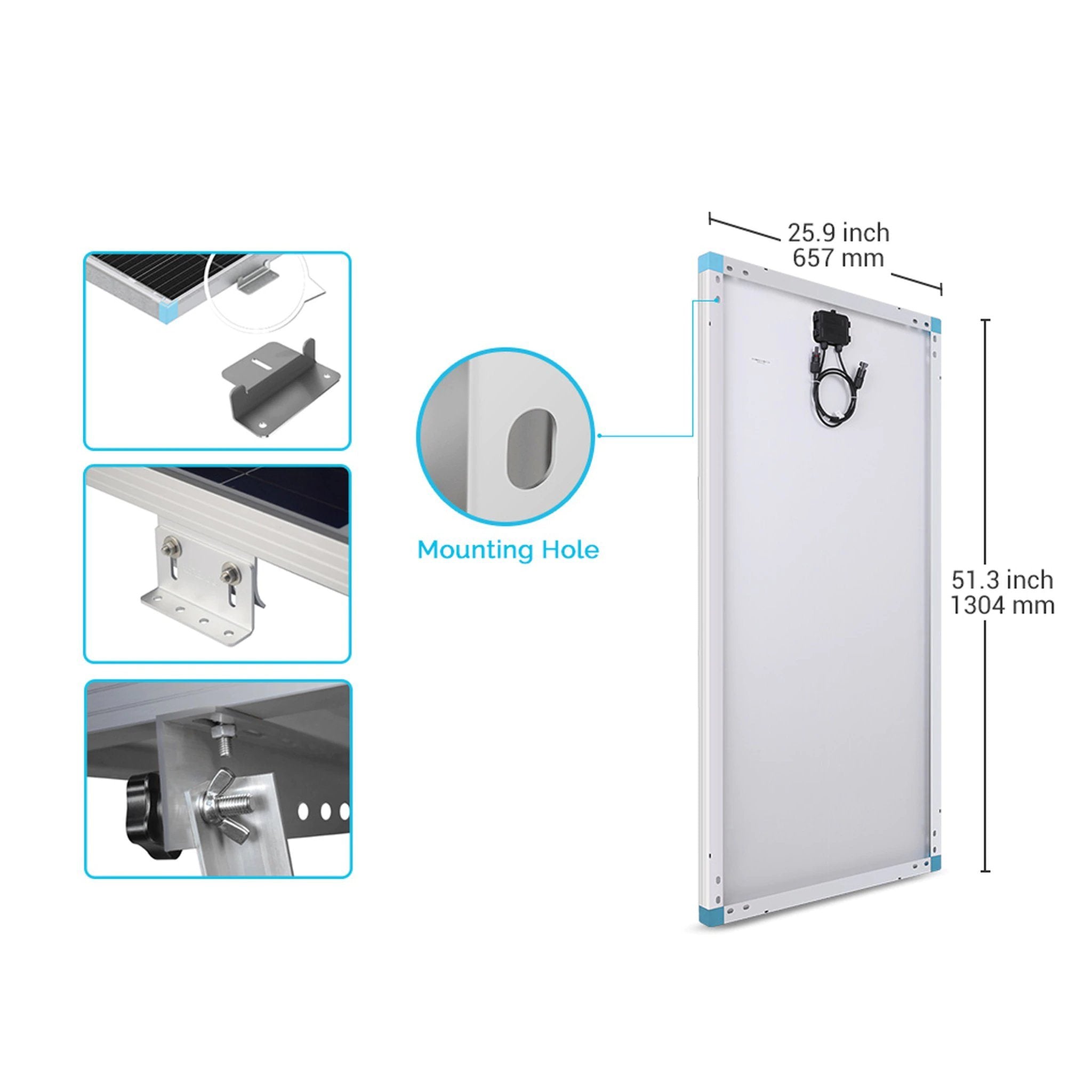

Dimensions: 52.3x26.4x1.38 in (1328*670*35mm)
Weight: 20.9 lbs (9.5Kg)
Solar Cells: 32 Monocrystalline Cells
Junction Box: IP65
Connectors: Solar Connectors
Module Efficiency: 19.80%
Material and workmanship warranty: 5 years
Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
