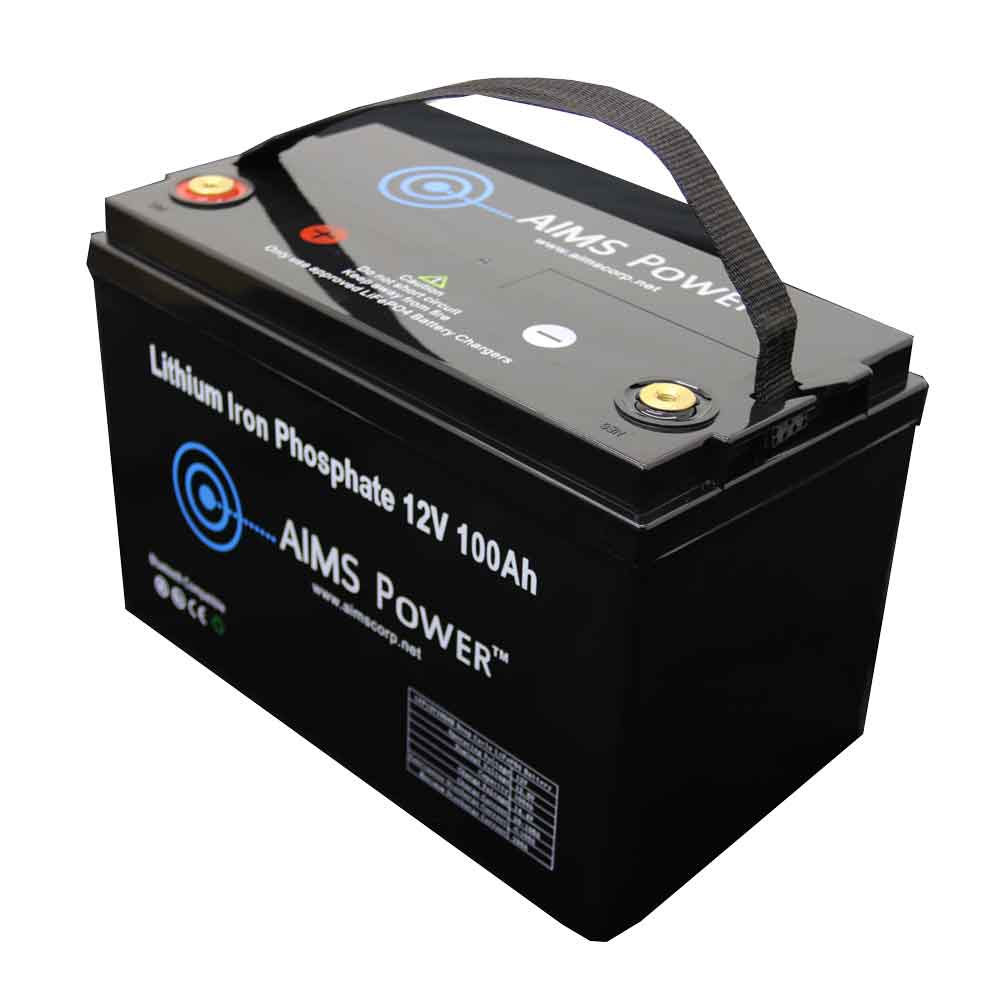

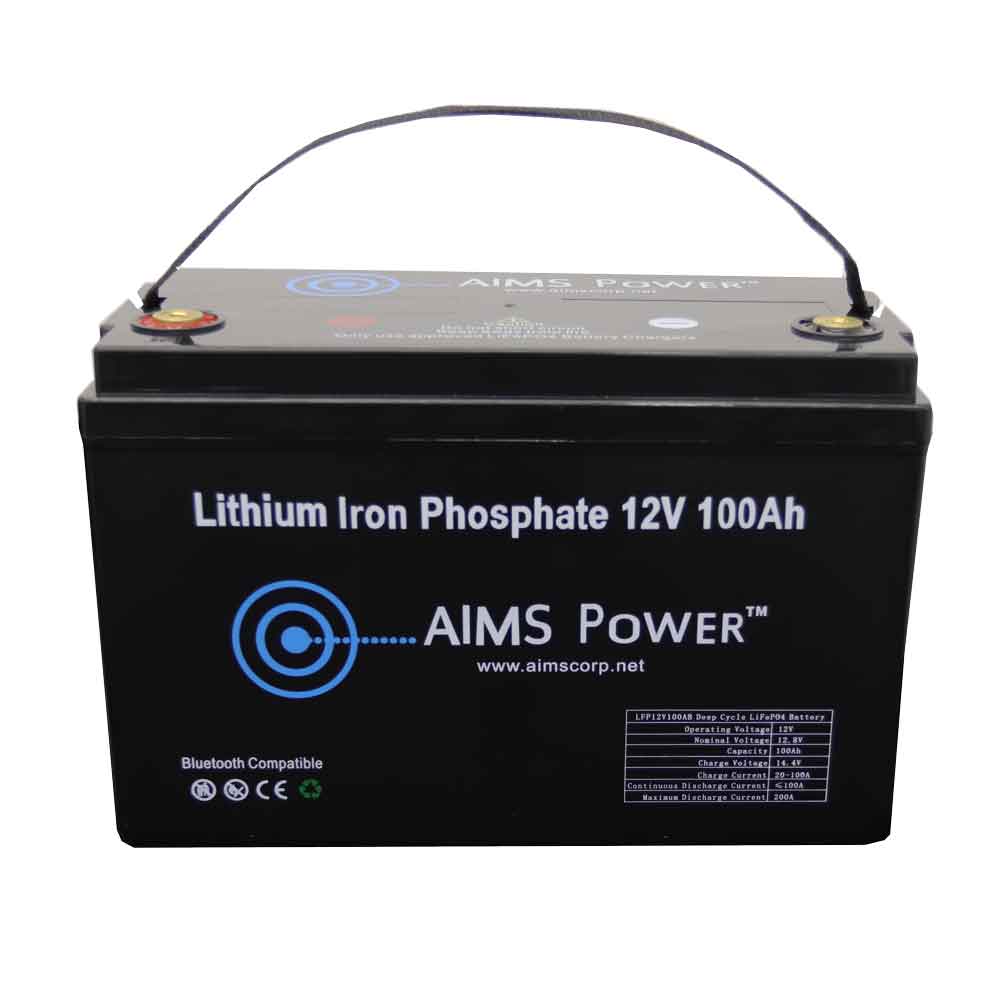

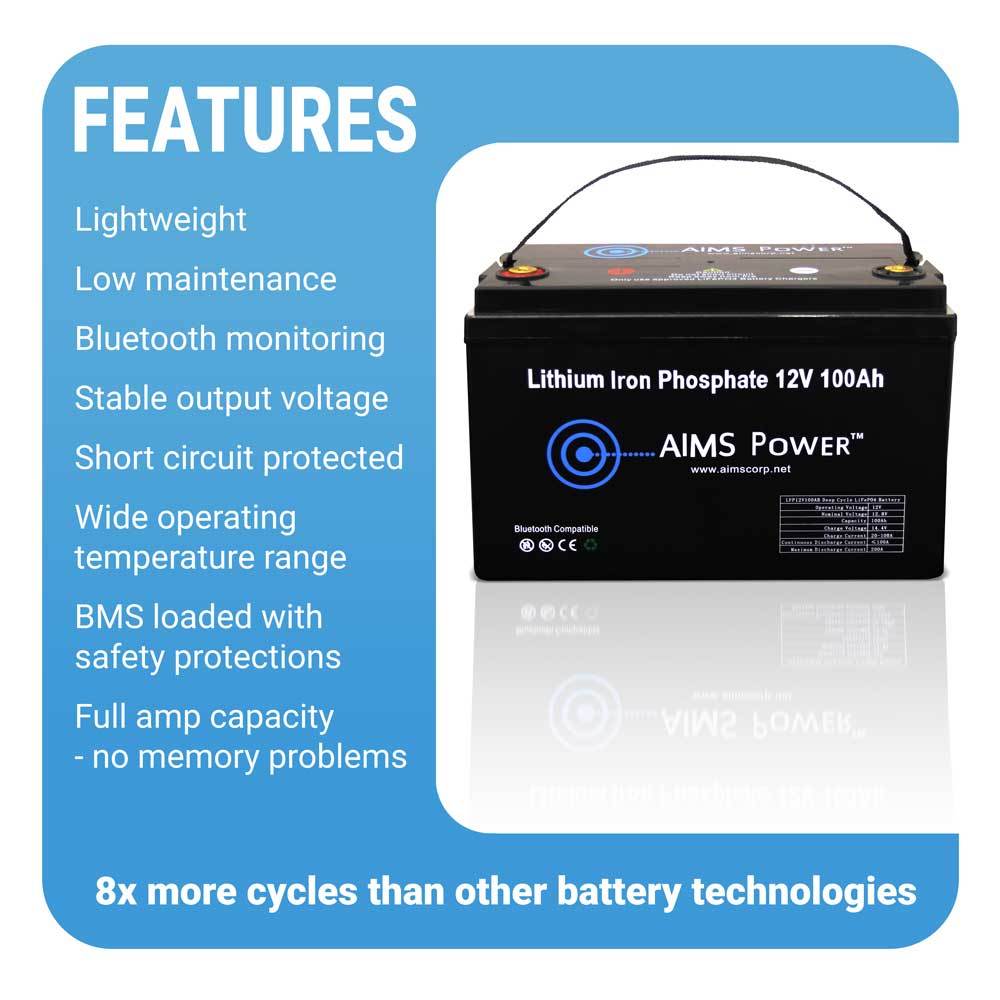

Introducing the newest addition to the AIMS Power family: the 12V 100Ah LiFePO4 Lithium Iron Phosphate battery with Bluetooth monitoring. Say goodbye to the hassle and maintenance of traditional lead acid batteries and hello to the future of power storage with this advanced lithium technology.
This battery boasts an impressive number of charge/discharge cycles, with a lifespan of over 10 years with proper maintenance. Plus, with the added convenience of Bluetooth monitoring, you can easily keep an eye on your battery's status and performance from your phone.
The wide operating temperature range and unsurpassed high temperature performance make this battery perfect for a variety of applications, including RVs, golf carts, boats, commercial vehicles, and off-grid backup power.
Not only is it environmentally friendly with no metal contaminant, but it's also low maintenance and packed with power in a small and lightweight footprint. The sophisticated Battery Management System (BMS) provides safety protection, including overcharge and over-discharge protection, and even the ability to withstand physical damage to the battery case without causing a fire.

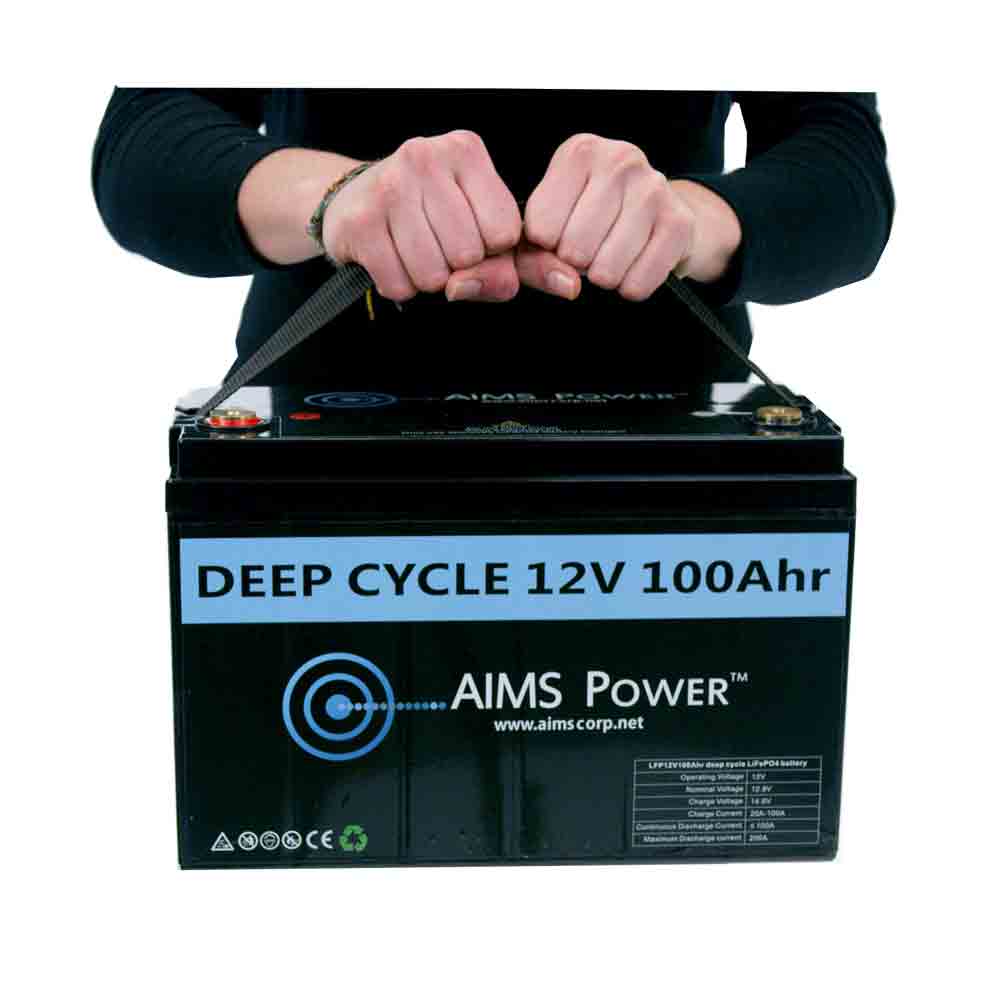

With 100A continuous charge and discharge current, a peak instant discharge current of 200A, and self-discharge rate of less than 3% per month, this battery is truly a powerhouse. Plus, it's lightweight and comes with a convenient removable carry handle.

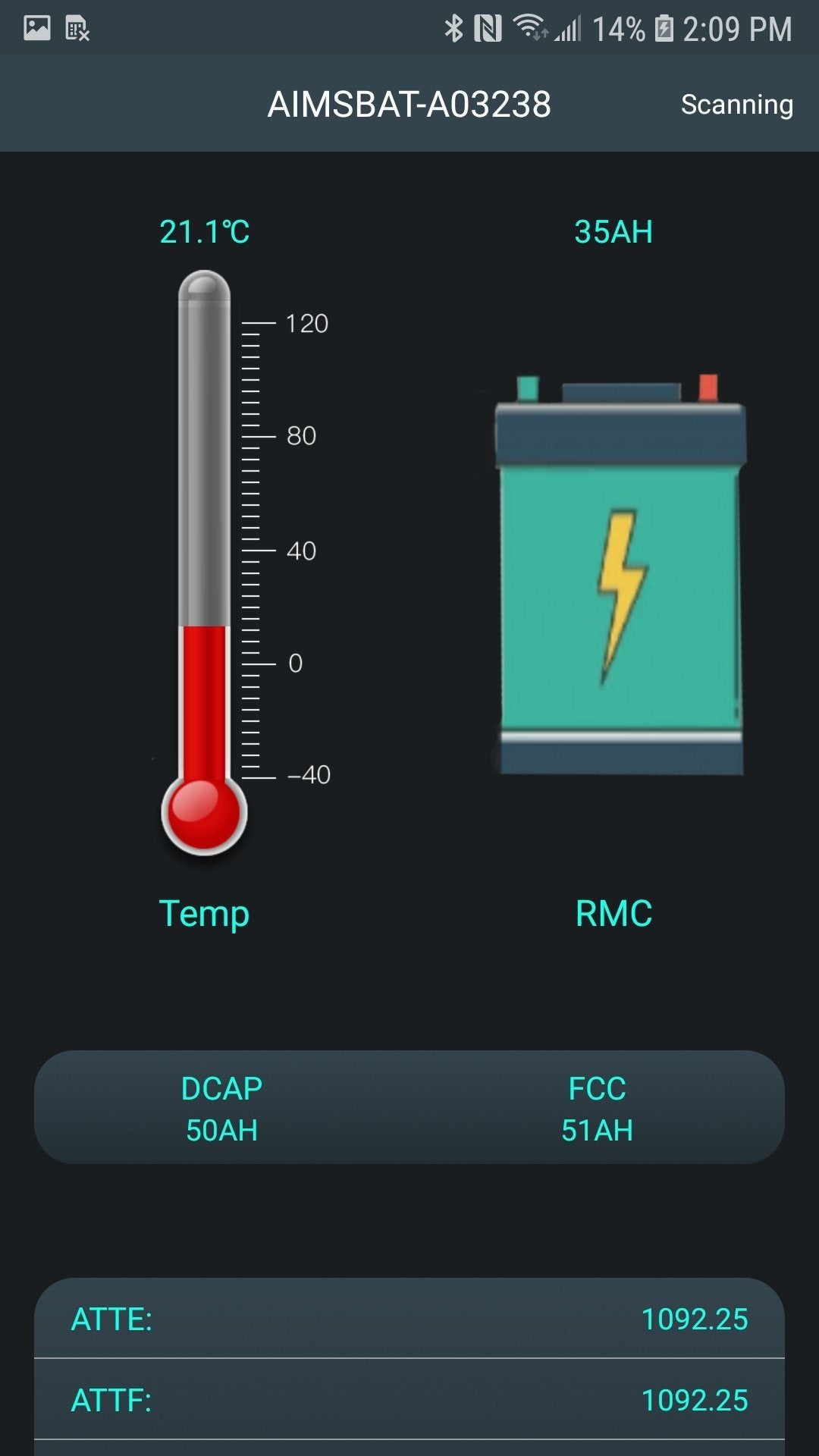

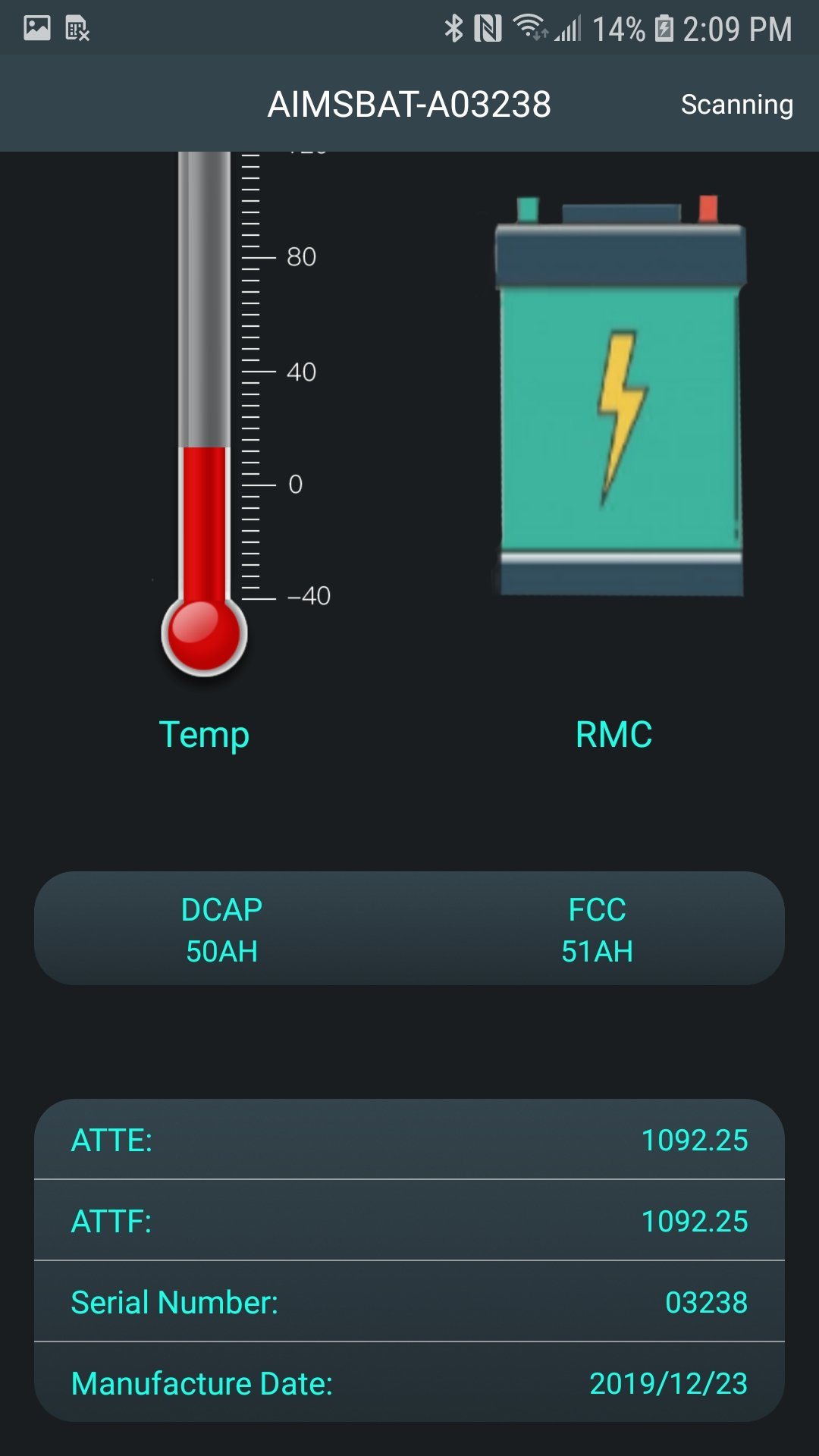

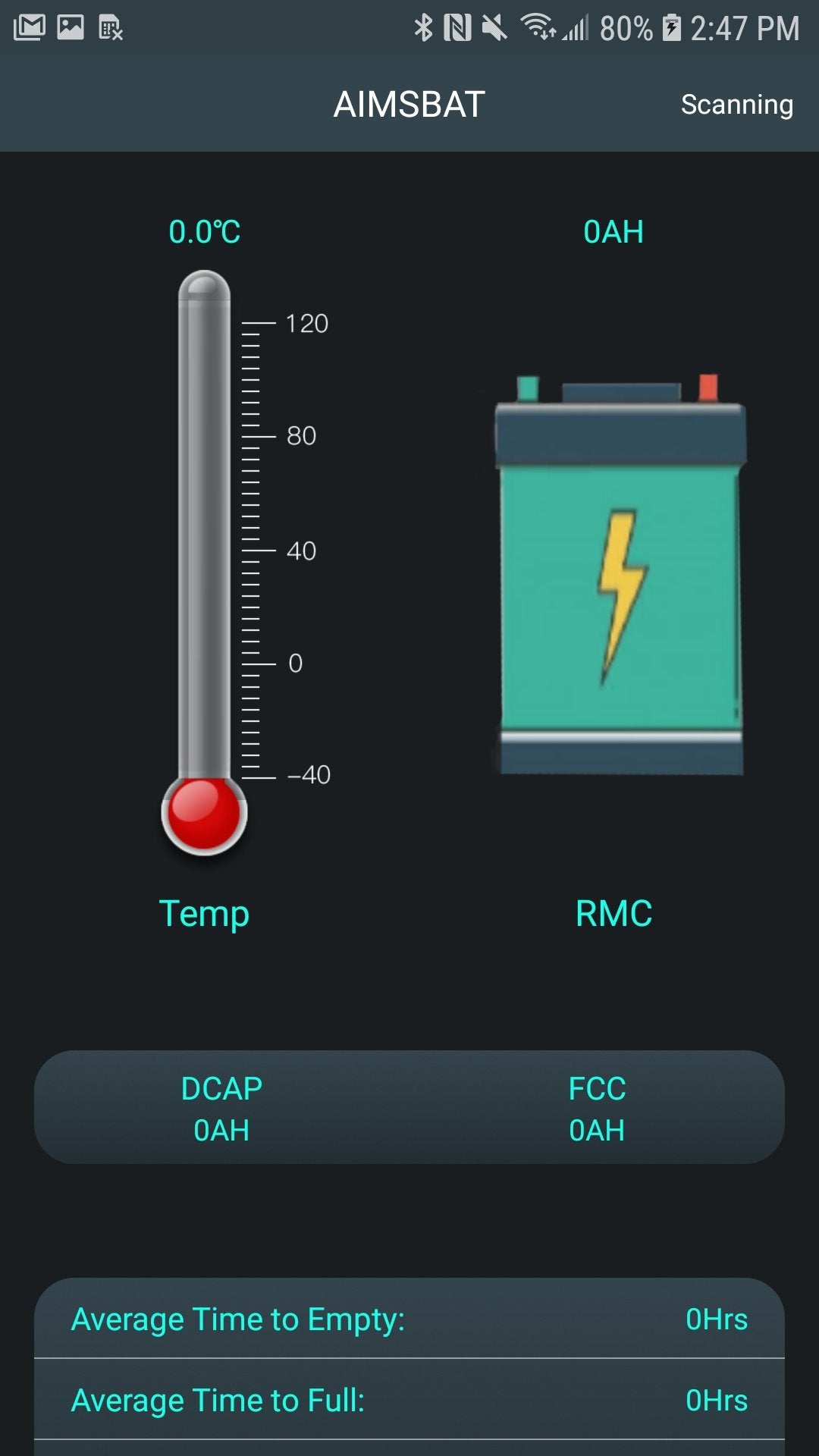

AIMS Power also offers 50, 100 & 200 Ah models, and this product comes with a 10-year manufacturer defect warranty for added peace of mind. To monitor your battery's performance, download the AIMSBATB app on Google and Apple app store, if you own an AIMS lithium battery and the part number is LFP12V100B.
Electrical Specifications:
- Nominal Voltage: 12.8V
- Nominal Capacity (at .5C, 77°F): 100Ah
- Minimum Capacity (at .5C, 77°F): 95Ah
- Expected Cycle Life: >4000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD
Operating Specifications:
- Charge Method: Smart charger, constant current, constant voltage
- Charge Voltage Range (Max 14.6V): 14.4 -14.6V
- Continuous Charge Current: 100A Max
- Charge Temperature: 32° F to 113° F
- Continuous Discharge Current: 100A Max
- Peak Instant Discharge Current (10 secs): 200A
- Over Voltage Shutdown: 15.2 +/-.5V
- Discharge Cut-off Voltage: 8V =/- .5V
- Discharge Temperature: -4° F to 149° F
- Storage Temperature: -4° F to 113° F
- Self Disharge (stored at 50% SOC): < 3%/month
- Watt hours: 1280 watt hours
Physical Specifications:

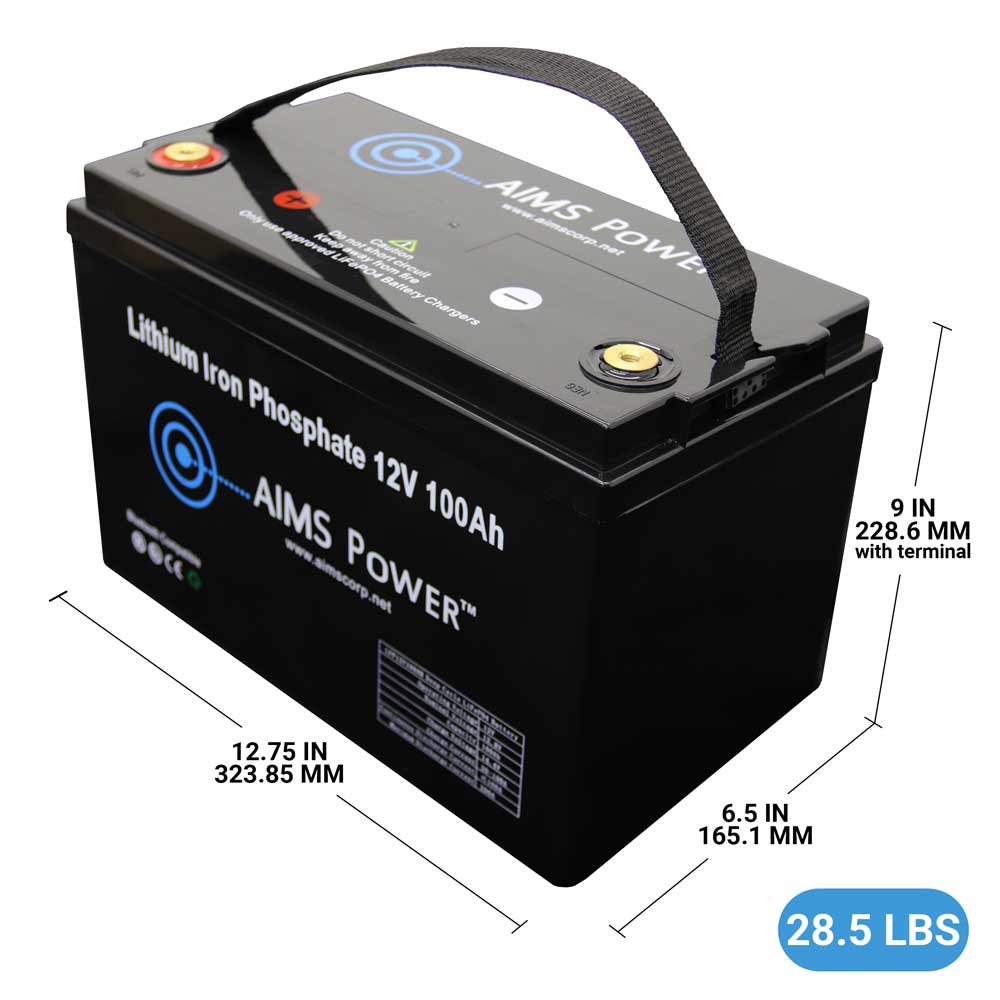

- Battery Dimensions: 12.75"L x 6.50"W x 8.3"H 9" with terminals
- Weight: 28.5 lb
- Shipping Weight: 29.5 lb
- Group Size: 31

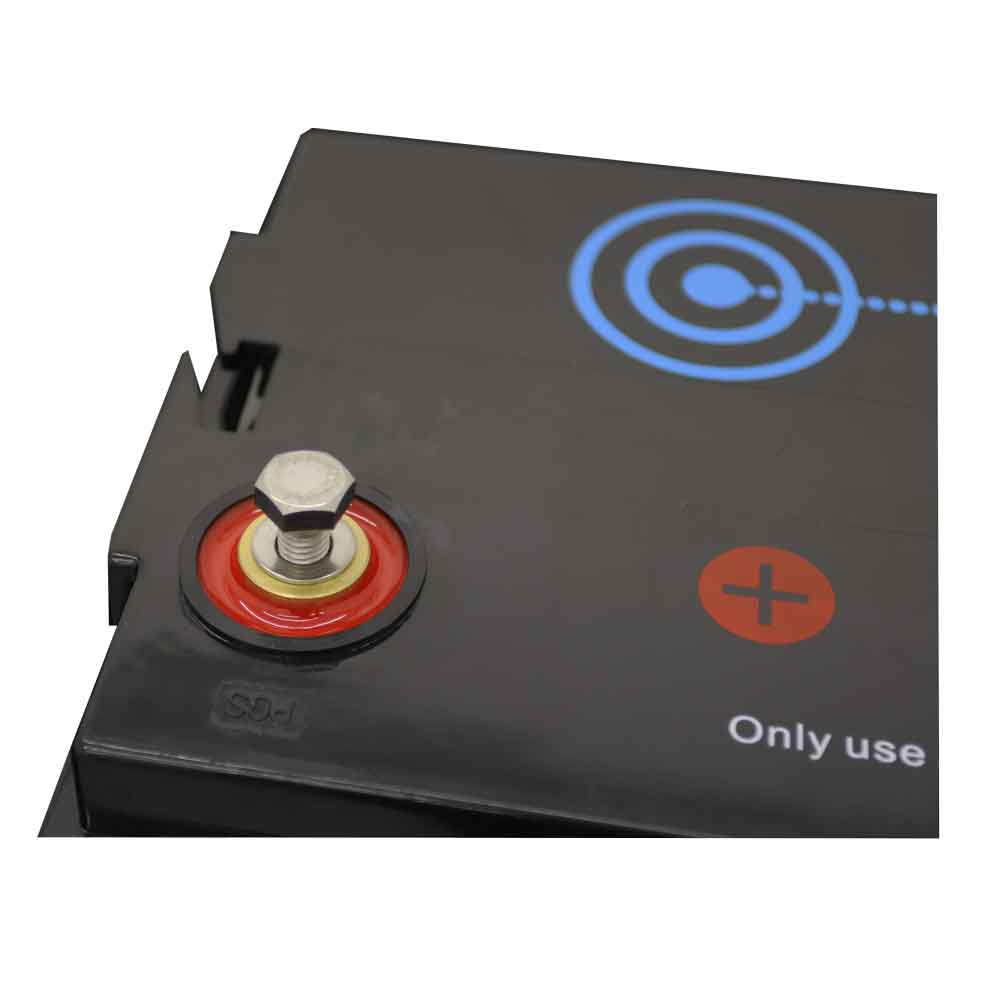

- Battery post size: 5/16" 8M 1.9" long
BMS Operation:
- Over Charge Protection:
- Over charge detection voltage: 3.8 +/- .05V
- Over charge detection delay time: .96 – 1.4s
- Over charge release voltage: 3.60 +/-.05V
- Maximum charge voltage: 3.65 +/-.05V
- Over Discharge Protection:
- Over discharge detection voltage: 2.0V +/- .05V
- Over discharge detection delay time: .96-1.4 s
- Over discharge release voltage: 2.3V +/- .10V
- Over Current Protection:
- Over current detection delay time: 9 +/- 2ms
- Over current release condition: Cut load
- Polarity Reverse Protection: Yes
- Short Circuit Protection: Yes
Other:
- UPC: 840271005812
- Warranty: 10 Yr Manufacturer Defect. Prorated.
