The Renogy 1000W 12V Pure Sine Wave Inverter is perfect for most off-grid systems, whether for a van, semi-trucks, 5th wheels, cabin, or any remote location needing power. The Renogy 1000W Pure Sine Wave Inverter acts as a DC to AC converter that allows you to power your household appliances. The advanced Renogy pure sign wave technology will protect and extend the life of your electronics and appliances. With its quiet and high inductive loads, there are no strange buzzing sounds when your electronics are turned on and allow them to run smoother, cooler and quieter.
POWERFUL DC-AC: 1000W continuous, 2000W peak surge during load start-up, 12V to 120VAC pure sine wave with conversion efficiency >90%, reduces conversion loss.
SAFE FOR USE: LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication. Cooling funs and ground-fault circuit interrupter (GFCI) protection.
PROTECTS YOUR ELECTRONICS: Advanced pure sine wave technology provides quality AC equivalent to grid power which will protect and extend the life of your electronics and appliances. With its quiet and high inductive loads, there are no strange buzzing sounds when your electronics are turned on and allow them to run smoother, cooler, and quieter.
EASY TO USE: Offers a built-in 5V/2.1A USB port, 2 AC Outlets and 1 AC Terminal Block, along with a 3tf 4AWG Cable and a 19.8ft Wired Remote Control.
RELIABLE QUALITY: ETL certified product ensures safety and quality. Offers 1-Year material and workmanship warranty.

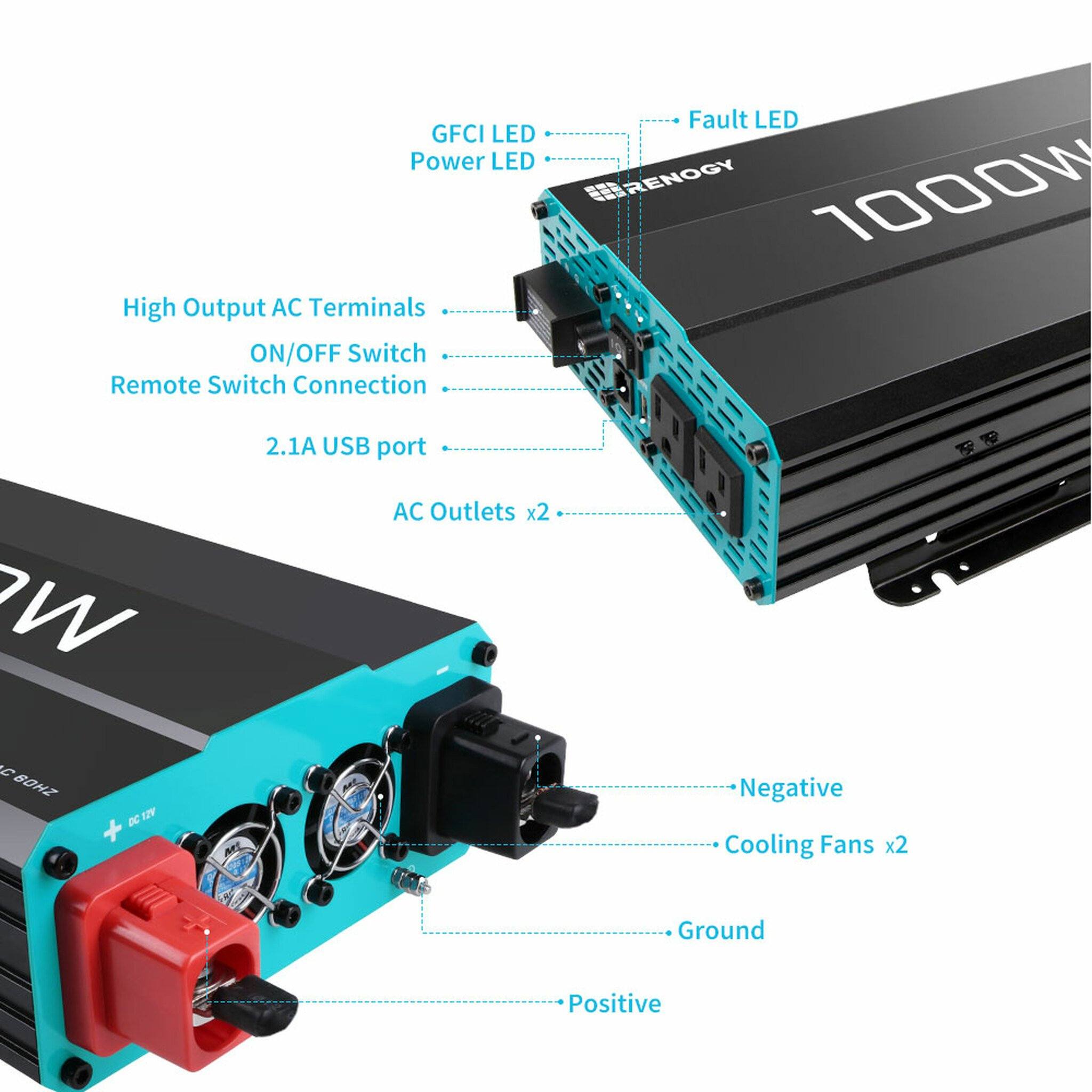

2 AC Outlets and 1 built-in 5V/2.1A USB port
1 AC Terminal Block
1 built-in 5V/2.1A USB port
LED indicator to easily monitor the operation status:
*Green - operating
*Yellow - ground fault
*Red - powering down due to overheating, overload, under-voltage or over-voltage.
Optimized for 12 VDC system voltage and work perfectly with all type of batteries.
Thermally controlled, high-speed ventilation fans to help keep the inverter running at a low temperature
Both terminals are equipped with caps to ensure your safety.
|RENOGY 1000W 12VDC-120VAC PURE SINE WAVE INVERTER
|Inverter Output Specifications
|Continuous Output Power
||Nominal Input Battery Voltage
|Peak Power Rating
||Battery Terminal Size
||Low Battery Alarm
||10.5V ± 0.5V DC
||60 Hz ± 0.1%
||High Voltage Alarm
|AC Output Sockets
||Battery Low Shutdown
||10.0V ± 0.5V DC
|AC Terminal Block
||Over Voltage Shutdown
||16.5V ± 0.5V DC
|USB Power Port
||No Load Current Draw
|Power Output Control
||AC On/Off Switch, and Remote Control
||Pure Sine Wave
||Inverter Remote Control
|Total Harmonic Distortion (THD)
||< 3% Linear Load < 5% Non-linear Load
||ETL Listed to UL 458 and CSA 22.2 NO 107.1-01

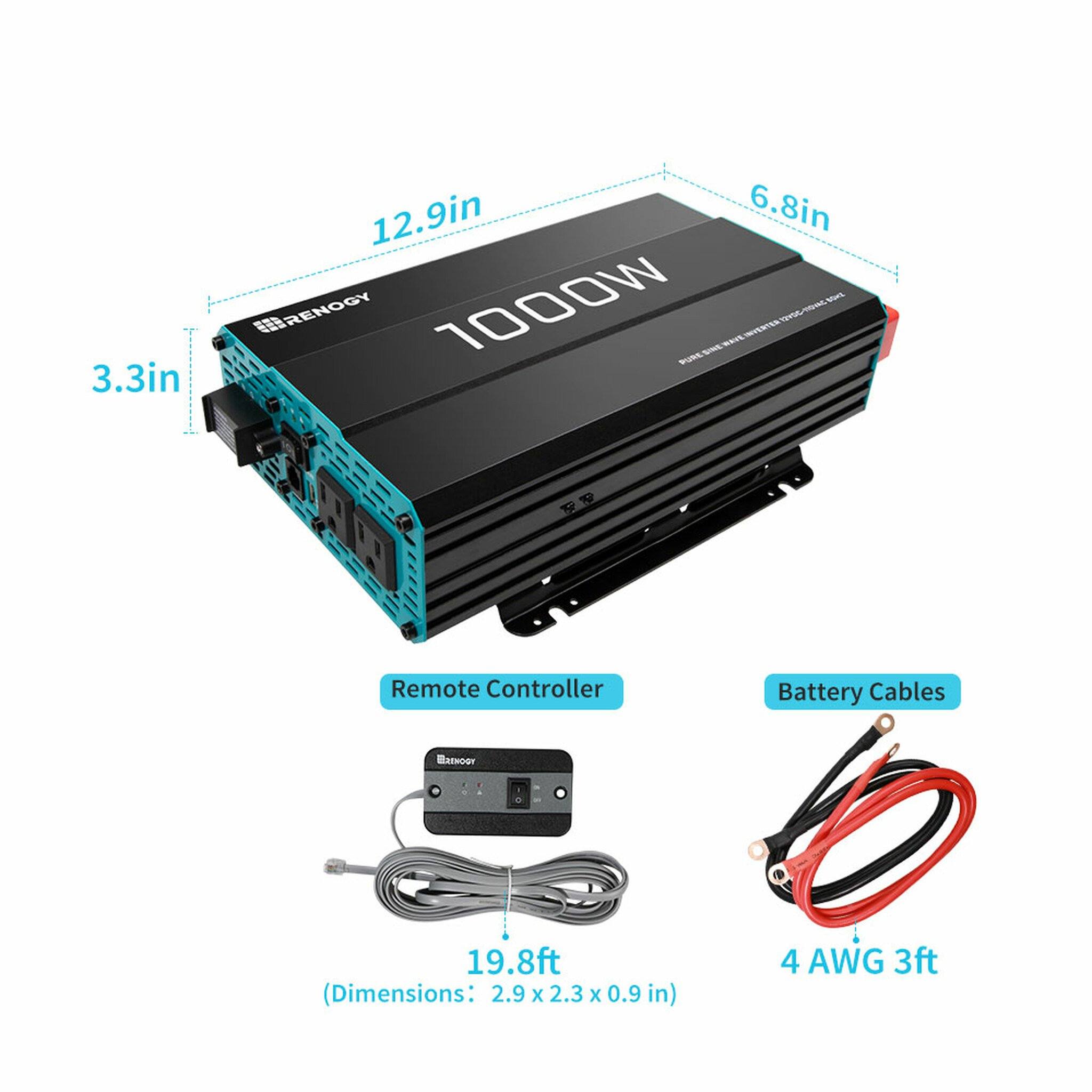

||12.9"L x 6.8"W x 3.3"H
||FCC Part 15 class B
||Material and workmanship warranty
|Operating Temperature Range
||-4°F - 158°F
