Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery enables auto-balance among parallel connections and provides more flexibility for battery connection. The integrated smart battery management system (BMS) not only protects the 12V 100Ah LiFePO4 battery from various abnormalities but also monitors and manages the charging/discharging process. The state-of-the-art battery cells ensure a long cycle life and exceptional discharge performance. If you’re searching for a deep cycle battery for caravan, cabin, or marine use, this lightweight, auto-balanced, ultra-safe, long-cycle-life lithium-ion battery is the perfect plug-and-play solution for you!
Uncompromising Quality: State-of-the-art battery cells ensure a lifespan of more than 4000 cycles, 100A continuous discharge current, and a wide operating temperature range.

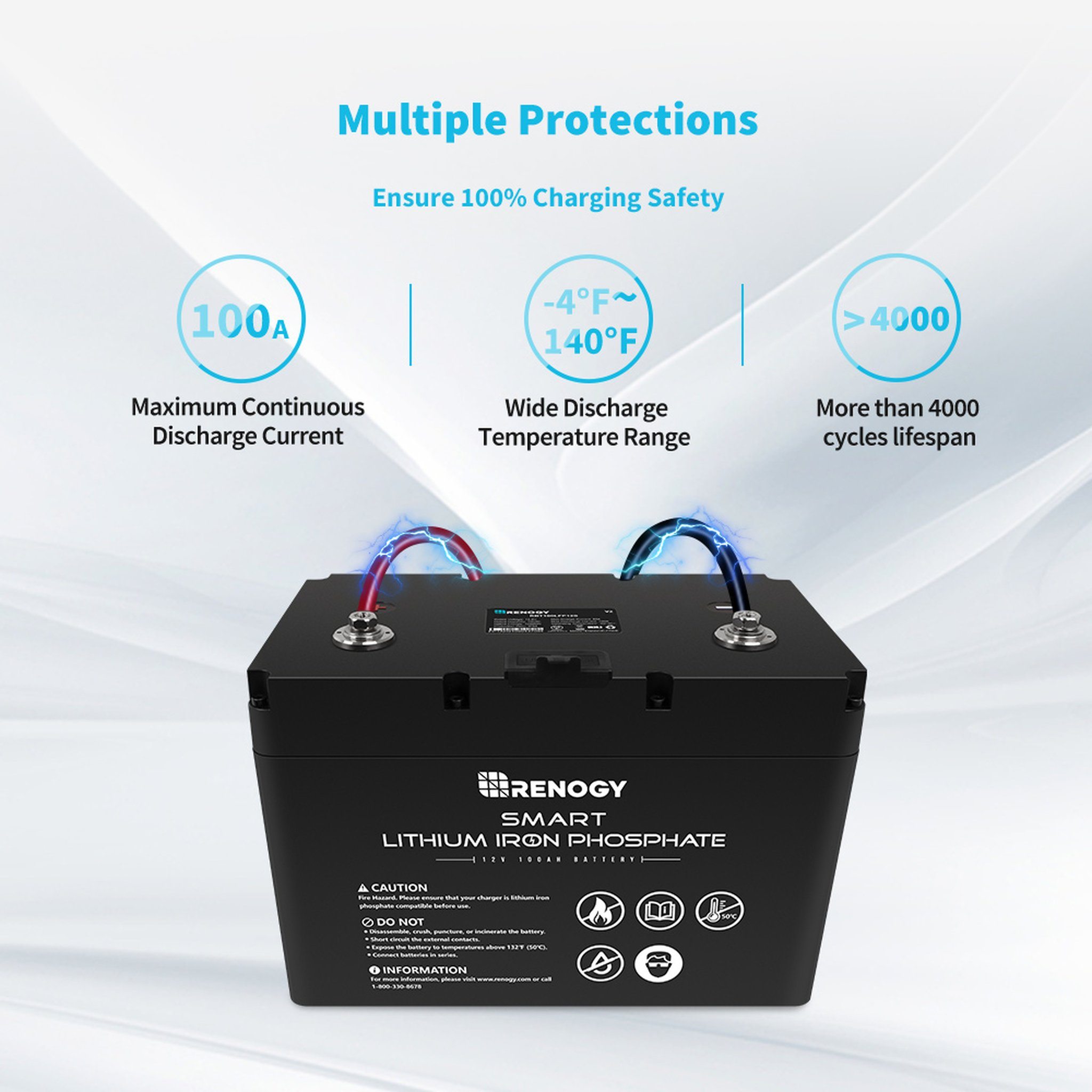

Reliable BMS System: The state-of-the-art battery management system (BMS) with high-performance dual-processors provides short circuit, over charging and over-temperature protection while maintaining a balanced voltage across all cells.
Activation Switch: The activation switch will allow you to manually access shelf mode. This is where the battery will have a very low self-discharge rate and can hold charge for longer, protecting your battery when not in use.
Auto-Balancing Function: Easily connect multiple batteries in parallel with the auto-balancing function, improving the average charging efficiency for your batteries in the long term.
Real-Time Monitor: The battery features a RS485 communication port—enabling communication between batteries, external devices (BT-2 Bluetooth Module or Monitoring Screen) and host computers for you to monitor the charging status in real-time on the Renogy DC Home APP.
- The normal operation of the self-heating function requires a stable charge current greater than 3A.
- Please secure all cable connections to the proper specification in order to ensure good contact between the cable lugs and the terminals. Over-tightening cable connections can cause terminal breakage and loose cable connections can cause terminal meltdown or fire.
- DO NOT string the battery in series. ONLY connect batteries of the same manufacturer and model in parallel.
- Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-current protection.
12V 100AH SMART LITHIUM IRON PHOSPHATE BATTERY
ELECTRICAL SPECIFICATIONS
Battery Type: Lithium Iron Phosphate
Rated Capacity: 100AH
Nominal Voltage: 12.8V
Voltage Range: 10-14.8V
Energy: 1280WH
Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles
Connection Method: Parallel
Automatically Self-heating Function: No
MECHANICAL SPECIFICATIONS

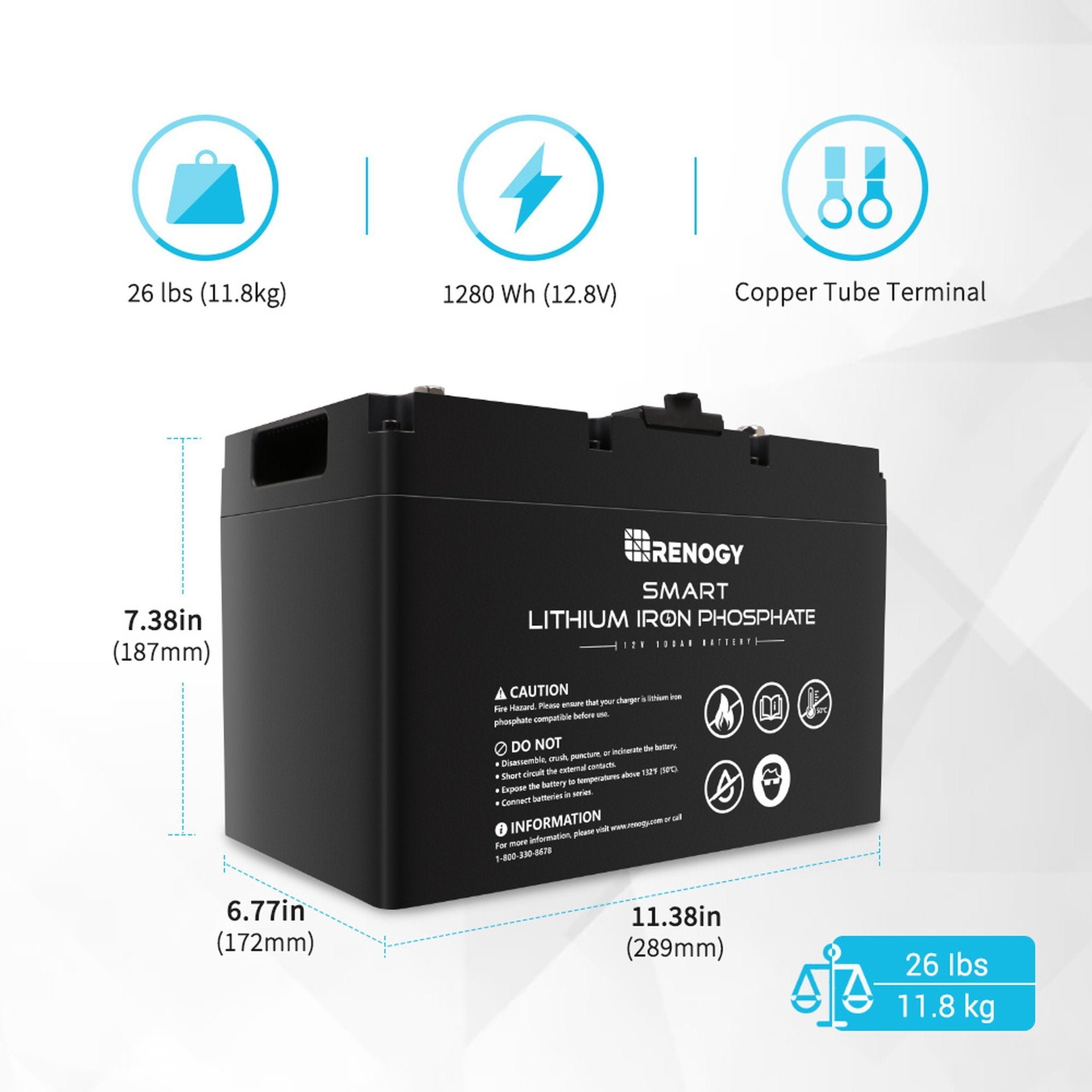

Dimensions: 11.4 x 6.8 x 7.4 inch /289 x 172 x 188 mm
Weight: 26 lbs. / 11.8 kg
Protection Rate: IP54
Housing Material: PC+ABS
CHARGING PARAMETERS
Charge Voltage: 14.4V
Maximum Continuous Charging Current: 50 A
Charge Cut-off Voltage: 14.4V
DISCHARGING PARAMETERS
Maximum Continuous Discharging Current: 100 A
Discharge Cut-off Voltage: 10V
TEMPERATURE PARAMETERS
Standard Operation Temperature: 25℃±5℃
Storage Temperature: -13~149℉ / -25~65℃
Charge Temperature: 32~131°F/ 0~55°C
Discharge Temperature: -4~140°F/ -20~60°C
COMMUNICATION
Built-in Bluetooth: No
Communication Port: RJ45 (Modbus Protocol)
ACCESSORIES
Bolts: M8 x2
Activation switch: x1
WARRANTY
Material and workmanship warranty: 5-year
opc:
CERTIFICATIONS
Certifications: UN38.3, MSDS, CE, FCC, PSE, UL (Battery Cell), TUV (Battery Cell)
