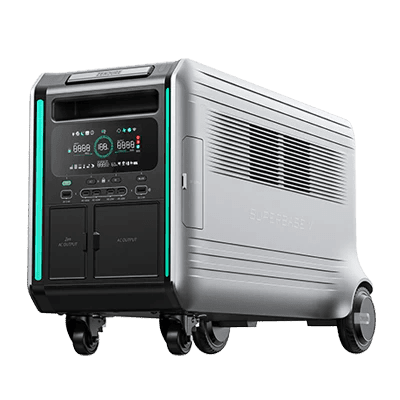

Zendure SuperBase V6400
Combining AC and solar power, SuperBase V can charge up to 5,150W on its own, or 6,600W when connected to a Satellite Battery. Whether you're planning for an emergency or using SuperBase V to manage your household energy consumption, faster is always better.SuperBase V can charge up to 3,000 W using solar power alone. This is enough to fully charge the main unit in 2 to 3 hours. While we offer our own solar panels, SuperBase V is compatible with a wide range of other manufacturers' solar panels from 12V to 150V and can be easily integrated into your existing solar system.You can charge SuperBase V from a 120V or 240V outlet AC. At 240V, SuperBase V can draw 3,600W at its AC input and recharge in about 2 hours.
- 6.4kWh Capacity with 3,800 AC Output, expand up to 64kWh Capacity with 7,600W AC Output
- More Efficiency:
- Multiple Charge Max 6,600W, Input 6.6KWh in 1 hour
- The Industry's Fastest 3,000W Solar Input
- Fast charging EV at Level 2
- Reliable and Flexible Power Solutions:
- 120V/240V Dual Voltage Output in One Unit
- Seamless UPS
- EV-Grade Semi-solid State Batteries
- Charge temperatures compatible from -20°C to 45°C
Specifications:
|
Name： |
Model： |
|
SuperBase V |
ZDSBV6400 |
|
Capacity： |
Size： |
|
6,438Wh |
73 x 34.6 x 44.2cm |
|
Battery type |
Color |
|
Semi-solid State |
Gray |
|
AC Input： |
DC Input： |
|
15A Max, 120VAC 1800W or 240VAC 3600W ZenT2 Input: 100-240VAC, 3600W Max (EV T1 Adapter needed) |
XT90 Input: 12-150V⎓25A, 3000W Max |
|
Output： |
|
|
Total AC Output: 3800W rated 4x 5-20: 120VAC, 15A 1x 6-20: 240VAC, 16A 1x TT-30: 120VAC, 30A 1x Car Outlet : 12.6V⎓10A, 126W Max 2x DC5521: 12.6V⎓3A |
1x Andersen: 12.6V⎓30A, 378W Max USB-C(1)/(2): 5V-20V, 100W Max each USB-C(3)/(4): 5V-12V, 20W Max each USB-A(1)(2): 5V2.4A total |
|
Charge Temperature |
Discharge Temperature |
|
-20°C to 45°C / 0°C to 45°C |
-20°C to 45°C |
|
Weight: |
LED light： |
|
130lbs (59kg) |
RGB; Lighting |
|
Wi-Fi: |
Bluetooth: |
|
Yes |
Yes |
|
In The Box： |
|
|
AC cable, MC4 to XT90 cable, Car charging cable, Accessory pouch |
|
|

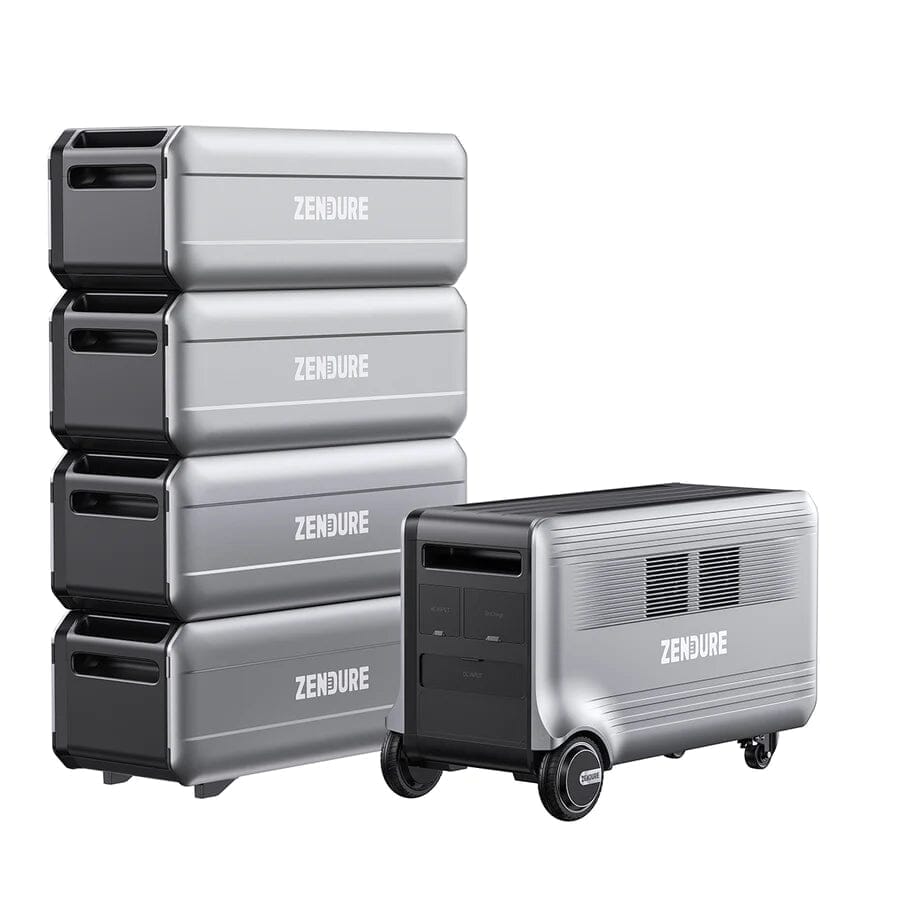

Name： |
Model： |
|
Satellite Battery |
ZDSATB6400 |
|
Capacity： |
Size： |
|
6,438Wh |
69 x 28.5 x 27.4cm |
|
Battery type |
Color |
|
Semi-solid State |
Gray |
|
DC Input： |
Output： |
|
XT90 Input: 12-150V⎓10A, 600W Max |
1x Car Outlet : 12.6V⎓10A 1x Andersen: 12.6V⎓30A, 378W Max XT90: 12-60V⎓10A, 600W Max (App enabled) |
|
Weight: |
LED light： |
|
101lbs (46kg) / 98.7lbs (44.8kg) |
RGB; Lighting |
|
In The Box： |
|
|
Handle Cover, MC4 to XT90 cable |
|
|
More: |
Smart APP compatible |

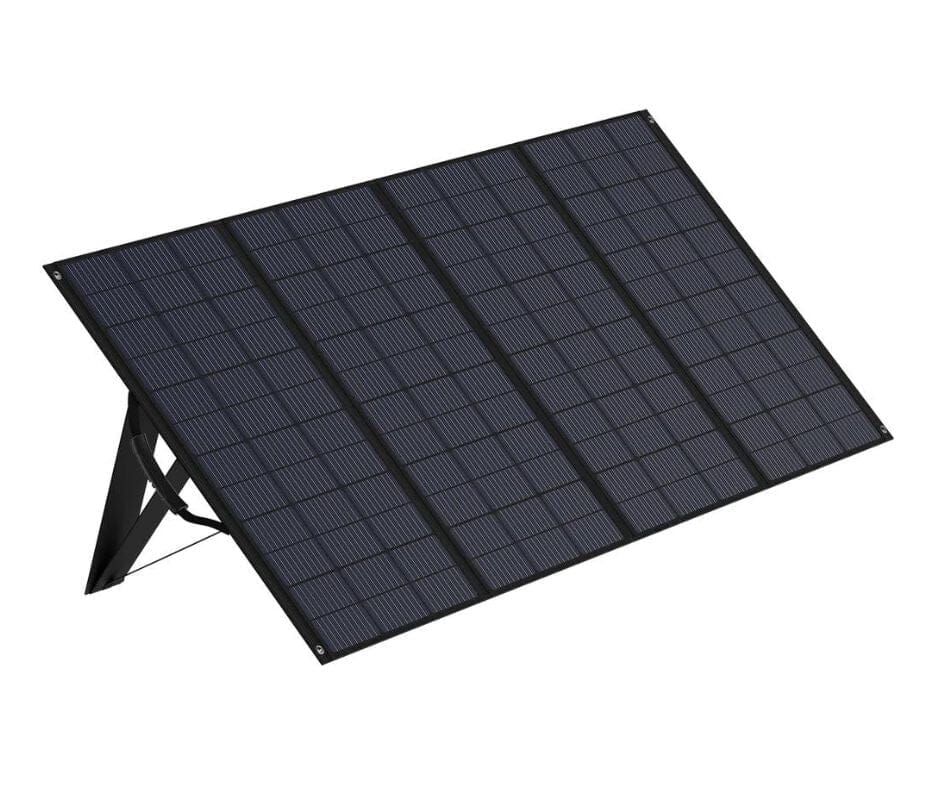

400W Solar Panel
Voltage(Vmp): 40V
Current(Imp): 10A
Open-Circuit Voltage(Voc): 49.4V
Connector: MC4, 1m total; Kickstand: x4, adjustable
Waterproof Level: IP54
Operating temperature: -10℃ ~ 65℃
Conversion Rate: ≥22% Unfolded: 100 x 224 x 2.5cm
Folded: 100 x 54.7 x 5.7cm
